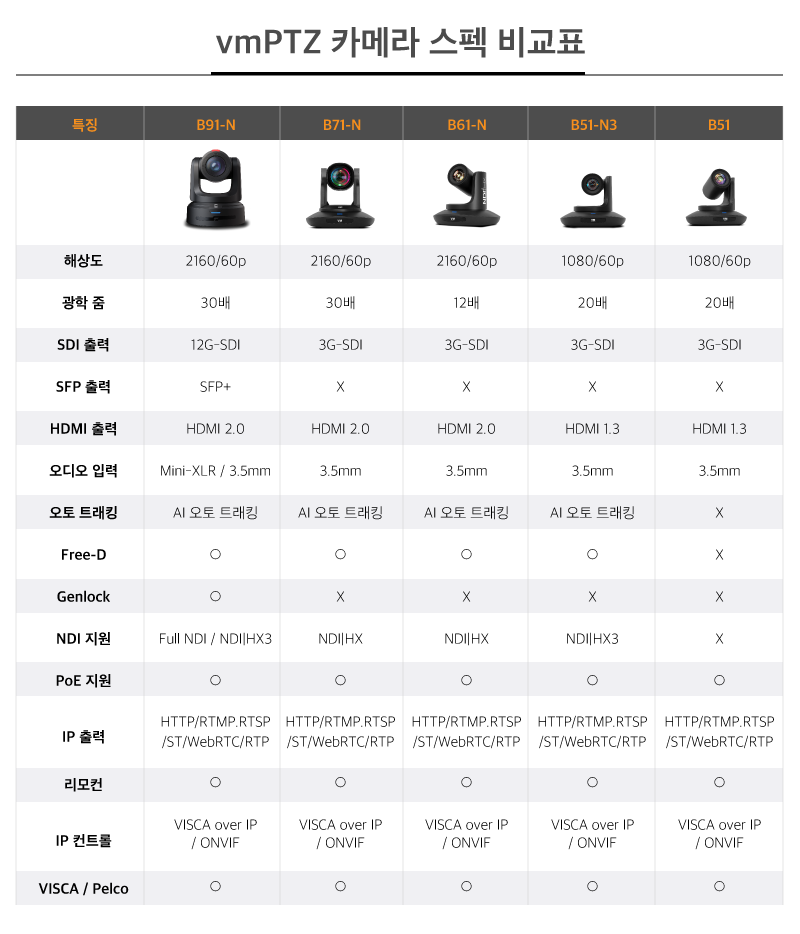

VMPTZ 카메라 비교표


B51
B51 N3
B71
B71 N
T32
이미지 센서1/2.8"1/2.8"1/1.8" 4K Sensor1/1.8" 4K Sensor1/2.8" 4K Sensor
비디오 포맷Max. 1080/60pMax. 1080/60pMax. 2160/60pMax. 2160/60pMax. 1080/30p
렌즈광학 20배 줌광학 20배 줌광학 30배 줌광학 30배 줌디지털 3배 줌
팬/틸트 범위
Pan:±170°； Tilt：-30°~+90°
±170°； Tilt：-30°_+90°
-
팬/틸트 속도
Pan：0.1°-120°/s； Tilt：0.1°-80°/s
Pan：0.1°-80°/s； Tilt：0.1°-60°/s
-
프리셋
리모컨:10개, 컨트롤러:128개
인터페이스3G-SDI, HDMI,
USB, IP		3G-SDI, HDMI,
USB, IP, NDI		3G-SDI, HDMI 2.0,
USB, IP		3G-SDI, HDMI 2.0,
USB, IP, NDI		SDI, USB, IP
컨트롤 포트RJ45, RS232,
RS485, USB		RJ45, RS232,
RS485, USB		RJ45, RS232,
RS485, USB		RJ45, RS232,
RS485, USB		RJ45, RS232,
RS485, USB
네트워크1GbE1GbE1GbE1GbE1GbE
지원 프로토콜HTTP,RTSP,
RTMP,ONVIF		HTTP,RTSP,RTMP,
ONVIF, NDI | HX3		HTTP,RTSP,
RTMP,ONVIF		HTTP,RTSP,RTMP,
ONVIF, NDI | HX		HTTP,RTSP,
RTMP,ONVIF
PoE 지원
○
○
○
○
○
최저조도0.1 lux0.1 lux0.1 lux0.1 lux0.5 lux
화이트밸런스
Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor
Auto/Manual/
One Push/Specified
color temperature
노출
Auto/Manual/Shutter/Iris/Bright
Fixed
포커스Auto/ManualAuto/ManualAuto/ManualAuto/ManualManual
노이즈 감서2D/3D DNR2D/3D DNR2D/3D DNR2D/3D DNR2D/3D DNR
팬/틸트 반전
○
○
○
○
○
전원공급DC12V / PoE+DC12V / PoE+DC12V / PoE+DC12V / PoE+DC12V / PoE+
